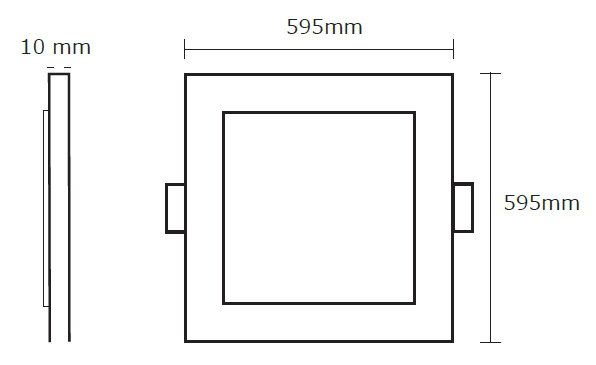

38-40W LED THIN PANEL
LED CHIP
| Name | SPECTRA LED THIN PANEL |
|---|---|
| Actual Power | 38-40W |
| Nominated Power | 40W |
| Size | 595*595mm |
| Cut-Out | -- |
| Light source | LED |
| LED QTY | -- |
| C.C.T. | 3000K/4000K/6000K |
| Input | AC180-260V 50/60Hz |
| Power factor | ≥0.92 |
| Material | Aluminum |
| Operating Temperature | -25°C ～ 50°C |
| Storage Temperature | -20°C ～ 40°C |
| Humidity | 10% ～ 65% |
| IP Rating | IP40 |
| Gurantee | 2Years 8-10hrs/day |
| CRI | ≥70 |
| Luminous Efficiency | 50-55lm/w |
| Beam Angle | 180° |
| pcs/ Carton | -- |
| Item Code 3000KWW | |
| Item Code 4000KNW | |
| Item Code 6000KCW | R4S1007 |

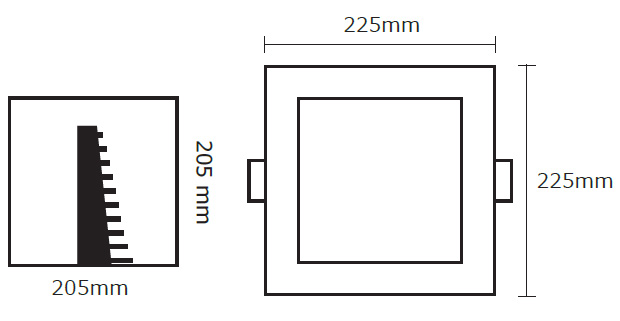

18-19W LED THIN PANEL
LED CHIP
| Name | SPECTRA LED THIN PANEL |
|---|---|
| Actual Power | 18-19W |
| Nominated Power | 18W |
| Size | 225*225mm |
| Cut-Out | 205*205mm |
| Light source | 2835 SMD MLS China |
| LED QTY | 90PCS |
| C.C.T. | 3000K/4000K/6000K |
| Input | AC180-260V 50/60Hz |
| Power factor | ≥0.45 |
| Material | Aluminum |
| Operating Temperature | -25°C ～ 50°C |
| Storage Temperature | -20°C ～ 40°C |
| Humidity | 10% ～ 65% |
| IP Rating | IP40 |
| Gurantee | 2Years 8-10hrs/day |
| CRI | ≥70 |
| Luminous Efficiency | 65-70lm/w |
| Beam Angle | 110° |
| pcs/ Carton | 20 |
| Item Code 3000KWW | |
| Item Code 4000KNW | |
| Item Code 6000KCW | R4S1010 |

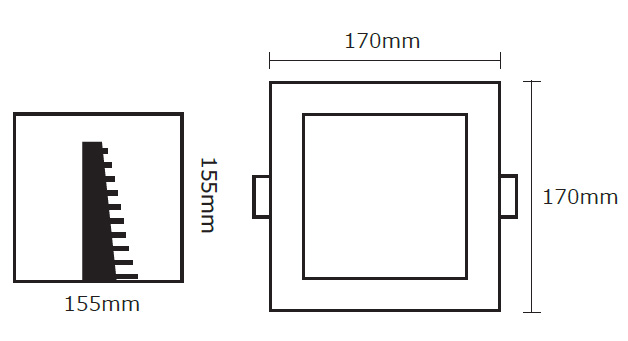

12-13W LED THIN PANEL
LED CHIP
| Name | SPECTRA LED THIN PANEL |
|---|---|
| Actual Power | 12-13W |
| Nominated Power | 12W |
| Size | 170*170mm |
| Cut-Out | 155*155mm |
| Light source | 2835 SMD MLS China |
| LED QTY | 60PCS |
| C.C.T. | 3000K/4000K/6000K |
| Input | AC180-260V 50/60Hz |
| Power factor | ≥0.45 |
| Material | Aluminum |
| Operating Temperature | -25°C ～ 50°C |
| Storage Temperature | -20°C ～ 40°C |
| Humidity | 10% ～ 65% |
| IP Rating | IP40 |
| Gurantee | 2Years 8-10hrs/day |
| CRI | ≥70 |
| Luminous Efficiency | 60-65lm/w |
| Beam Angle | 110° |
| pcs/ Carton | 30 |
| Item Code 3000KWW | |
| Item Code 4000KNW | |
| Item Code 6000KCW | R4S1009 |
